ZPS-SW2 | BAPI | Pressure Components

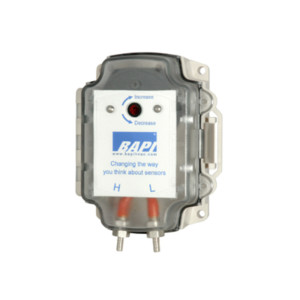

Differential Pressure Switch, Field Adjustable Setpoint from 0.4 to 1.40 Inches WC
Brand:BAPI
MPN:ZPS-SW2
SKU:BA/ZPSSW2
product specifications
Contact Type
SPDT
Enclosure Rating
IP66, NEMA 4X
Approvals
UL, RoHS
Connection
1/4 in BARB
Control Type
PID
Dimensions
5.4 in H x 4.1 in W x 2.5 in D (13.8 x 10.4 x 6.3 cm)
Maximum Operating Pressure
100 in W.C. (3.6 PSI, 24,900 Pa)
Measurement Range
0.40 - 1.40 in
Media Compatibility
Liquid/Gas
Mount
Panel, Wall
Operating Humidity
0 ot 95% RH
Operating Temperature
-40 to 185 °F (-40 to 85 °C)
Range
±5 in WC
Sensor Type
Micro-machined, single crystal silicon
Type
Zone
Warranty
5 Years
Weight
0.9 lbs (0.43 Kg)
product series specifications
Current Output: 7 to 4 0VDC @ 20 mA
Volts Output: 18 to 32 VAC @ 0.12VA, 13 to 40 VDC @ 4.9 mA
Accuracy: ±0.25% of range @72°F (NIST included)
Signal Output: 0-5/10V @ 1K?, 4-20mA @ l850?
Sensor Type: Capacitive
Adjustments: Range select from DIP switches
Normal Measurement Range: 0 to 5"WC, Uni- or Bi- Directional
Display: LCD, 4 digits, 0.37" high (readout may be neutralized)
Overpressure: (Burst) ±41.52"WC (10.34 kPa)
Max Operating Pressure: (Proof) ±27.67"WC, (±6.89 kPa)
Operating Temperature: -4 to 140°F (-20 to 60°C)
Operating Humidity: 0 to 95% Non-condensing
Wetted Parts: Silicone
Media Compatibility: Inert dry air
Process Connection: 3/16" OD brass, for 1/4" OD tubing
Wiring: 3 plug-in terminals 2-(4-20mA), 3-(Volts)
Mounting: 2 or 4, #10 screws (vertical position)
Enclosure Rating: UV-Polycarbonate UL94-V0, NEMA 4, (IP66)
Dimensions: 4.1"W x 5.49"H x 2.5"D, (10.4 x 13.9 x 6.4 cm)
Weight: 1.0 lb (0.45 Kg)
Approvals: CE, RoHS
Warranty: 3 years
product series features
- Field-selectable ranges and output signals
- Five direct and five bidirectional standard ranges
- 4-20 mA, 0-5 VDC, or 0-10 VDC output signal
- Inches of water or Pascal engineering units
- Optional large LCD display
- Microprocessor controlled auto-zero
- Rugged IP66 (NEMA 4) housing
- Short-circuit proof and polarity protected
- Three-year warranty
more information & related documents
Series Description
The BAPI ZPS Series Differential Pressure Transmitter is an accurate, rugged and economical solution for measuring and reporting duct/building static pressure, room-to-room differential pressure or air flow velocities/volumes. The ZPS Series micro-machined silicon piezoresistive pressure sensor is specifically developed for low differential pressure. The sensor's custom ASIC (Application Specific Integrated Circuit) provides five-point error correction over the compensated temperature range for excellent accuracy, repeatability and stability. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.<br>
Kele Description
DIFFERENTIAL PRESSURE
Manufacturer
BAPI
BAPI ZPS Datasheet
